QZYK1370DH-19 paper cutting machine

Key words:

Classification:

1370 series

Keyword： QZYK1370DH-19 paper cutting machine

E-mail:

kenrichxia@dapengmachinery.ltd

Message

Main Technical Parameters

Product Description

Main Technical Parameters

Model		QZYK1370DH-19
Max cutting width		137cm
Max cutting length		145cm
Max cutting height		16.5cm
Max motor power		4KW
Weight		4200kg
Width of machine	with sideway	293cm
	Without sideway	263cm
Smallest cut	Without false clamp	3cm
	With flase clamp	10cm
Cutting speed		45cycles/min

Product Description

Usage: Touch screen Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

19inch Touch Screen: It adopts 19inch touch screen, 200 groups programming capacity, each of them can store 1000 cuttings' datum of different locations; 0.01 mm position accuracy ; multi language . Cutting records can be downloaded to USB ，The edited program can be downloaded via USB or online ，Local upgrade can be done through USB or online upgrade ，cutting paper planning system

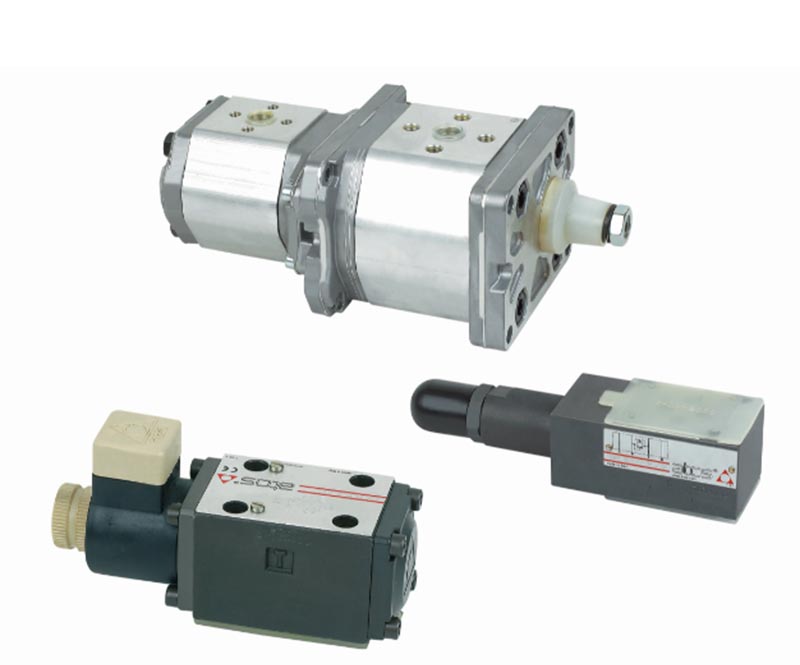

Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.

4.Double Guide Device: the paper pusher adopts double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.

Photo cell:it is equipped with a photo cell safety protection device.

Over load protection device; convenient knife changing device.

Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.

Cutting controller:both of the user’s hands operate the machine. It can cut paper in one time.

Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

Heavy duty resin without warp

Knife light lamp device improve production

Ejecting device for knife stick bar

The hydraulic pump adopts Italian Mazda

The Proportion valve adopts American Vickers.

Main electric device are imported from Germany, French, Japan, etc.

Automatic lubrication system ：the machine body will add lubrication hydraulic by itself .
