Main Technical Parameters
Product Description

Main Technical Parameters

Model

QZYK1370DH-15

Max cutting width

137cm

Max cutting length

145cm

Max cutting height

16.5cm

Max motor power

4KW

Weight

4200kg

Width of machine

with sideway

293cm



Without sideway

263cm

Smallest cut

Without false clamp

3cm



With flase clamp

10cm

Cutting speed

45cycles/min



This new automatic paper cutting machine from China provides operators with exceptional cutting versatility through its ability to handle various materials including printing paper, plastic, leather, and non-ferrous metal slices. The 15-inch touch screen interface with imported computer control system enables intuitive operation and precise parameter settings, while the self-diagnosis and protection functions prevent operational errors and reduce downtime. Manufacturers benefit from the double hydraulic device utilizing German technology that ensures stable cutting pressure and consistent performance, complemented by the double guide device with linear guides and ball screws that enhance cutting accuracy and machine longevity.

Engineered for high-volume production, this quality automatic paper cutting machine features CE-certified hydraulic components and durable construction that withstands continuous operation. The intelligent control system and advanced mechanical design work in harmony to deliver clean, precise cuts while maintaining operational safety. As a new automatic paper cutting machine from China, it represents advanced cutting technology that delivers the trusted performance of a quality automatic paper cutting machine while incorporating user-friendly features that enhance productivity, precision, and operational reliability for modern manufacturing environments.



Product Description

1.Usage: Touch screen Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.

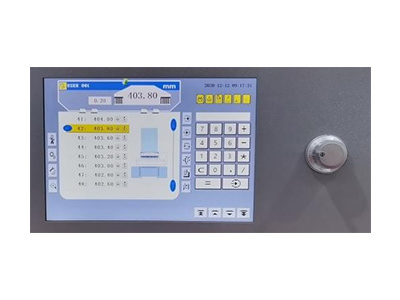

2. 15 inch Touch Screen computer: it adopts 15 inch touch screen color liquid crystal touch screen.It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation.
3. Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology. Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.

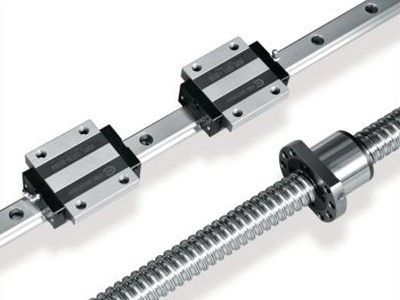

4.Double Guide Device: the paper pusher adopts double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.

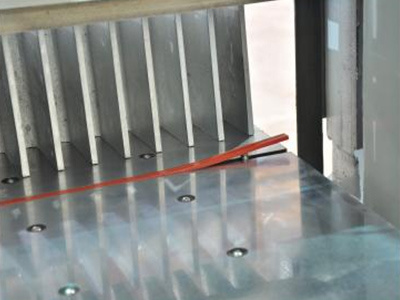

5.Photo cell:it is equipped with a photo cell safety protection device.

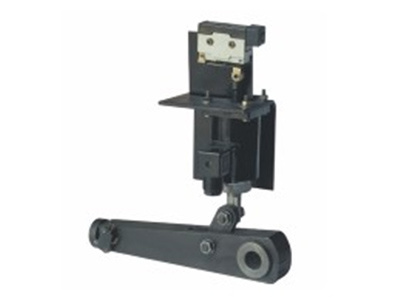

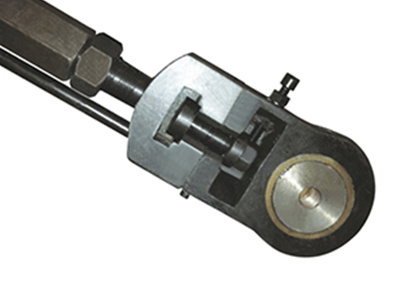

6.Over load protection device; convenient knife changing device.

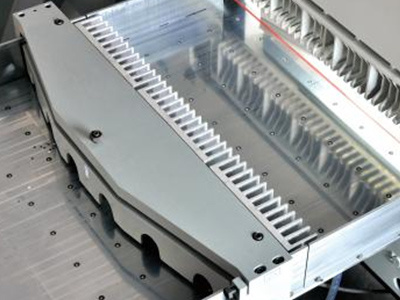

7.Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.

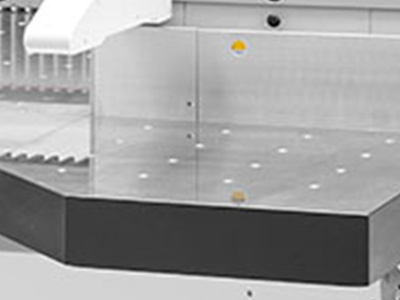

8.Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.

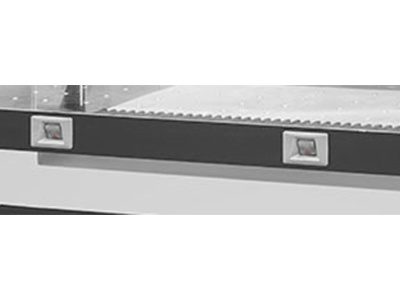

9.Cutting controller:both of the user’s hands operate the machine. It can cut paper in one time.
10.Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.

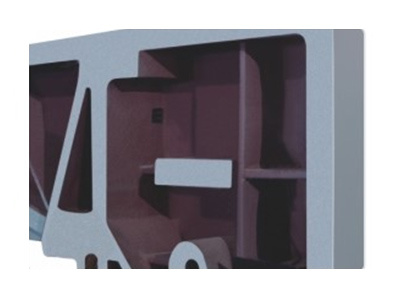

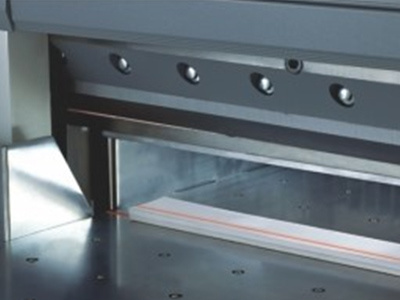

11.Heavy duty resin without warp
12.Knife light lamp device improve production
13.Ejecting device for knife stick bar

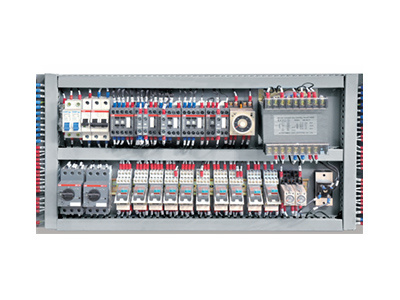

14.Main electric device
