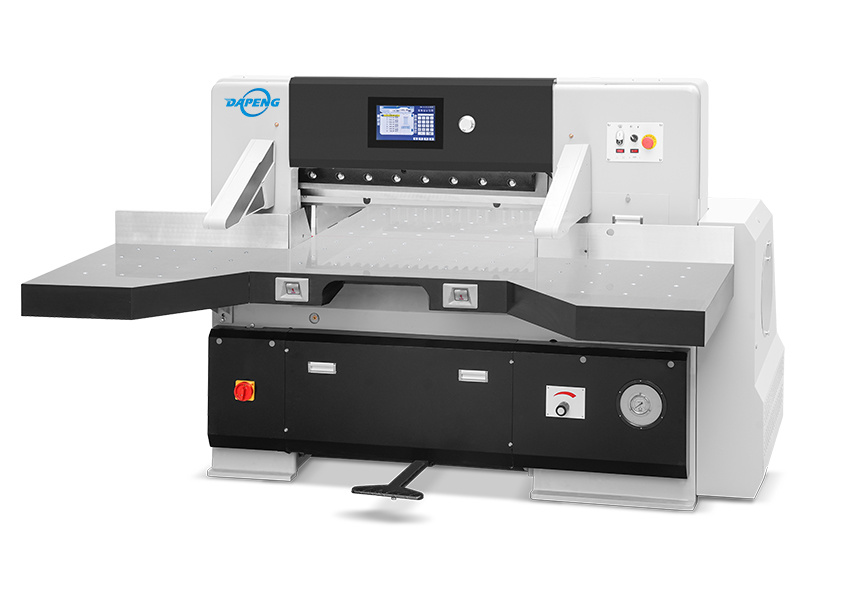

QZYK920DH-10 paper cutting machine

Key words:

Classification:

Keyword: QZYK920DH-10 paper cutting machine

Main Technical Parameters

Model

QZYK920DH-10

Max cutting width

92cm

Max cutting length

100cm

Max cutting height

13cm

Max motor power

3KW

Weight

2400kg

Width of machine

with sideway

240cm



Without sideway

208cm

Smallest cut

Without false clamp

2.5cm



With flase clamp

10cm

Cutting speed

45cycles/min

Product Description

Usage: Touch screen Paper Cutting Machine is used to cut the printing paper of various kinds, paper products, plastic, thin film, leather, slice of non-ferrous metal, etc.



53cd17b6-9e1c-4e38-b471-491f5e6f0647
10.4 inch Touch Screen computer:it adopts 10 inch touch screen color liquid crystal touch screen.It is equipped with imported whole set computer controlling system. The computer can do self-diagnose while malfunction, and do self-protection while wrong operation.
168ca89e-296a-4678-817d-7b9082758ac5
Double Hydraulic Device: the hydraulic system adopts the Germany advanced technology.Equipped with combined hydraulic valve, double hydraulic controlling structure, it approves hydraulic device greatly. The hydraulic device pass CE certificate.
4fb78e9e-fe6f-4c05-8d22-5302276d8c38
Double Guide Device: the paper pusher adopts double linear guide and roller ball screw.,which can prolong the machine use life, and can bear the high speed paper delivering.
4f88ad56-17fb-4508-bc59-2f38ca20b3f6
Photo cell:it is equipped with a photo cell safety protection device.
d19325b1-27ae-44b5-bcb5-f4396fb68beb
Over load protection device; convenient knife changing device.
9e934b01-7c3a-43d5-8ce3-bda369cacc5d
Worktable chrome treatment: the worktable and side board surface are all adopted chrome treatment to improve the precision and quality of the machine.
147c2c67-29f2-4a71-80a5-7b2371b65730
Air ball: air balls are installed in the worktable. The paper sending work will be easy and accurate.
58b1e009-740b-4faf-93af-f9bcbff397bd
Cutting controller:both of the user’s hands operate the machine. It can cut paper in one time.
0583a80d-85b4-42aa-bfb8-3fbde3524240
Electronic knife lock: when the machine is malfunction, the electronic knife lock will lock the knife, and the machine will stop cutting to protect safety.
8ffabd1c-4f29-4096-a789-ca6b71315ff0
Heavy duty resin without warp
e67c4cc1-d7dc-4582-b008-79f09998abe9
Knife light lamp device improve production
f5ef6ebf-6fde-4337-abd2-9c162c5164e2
Ejecting device for knife stick bar
ae1d6c72-9233-48a6-9f06-553b6834a717
Main electric device
