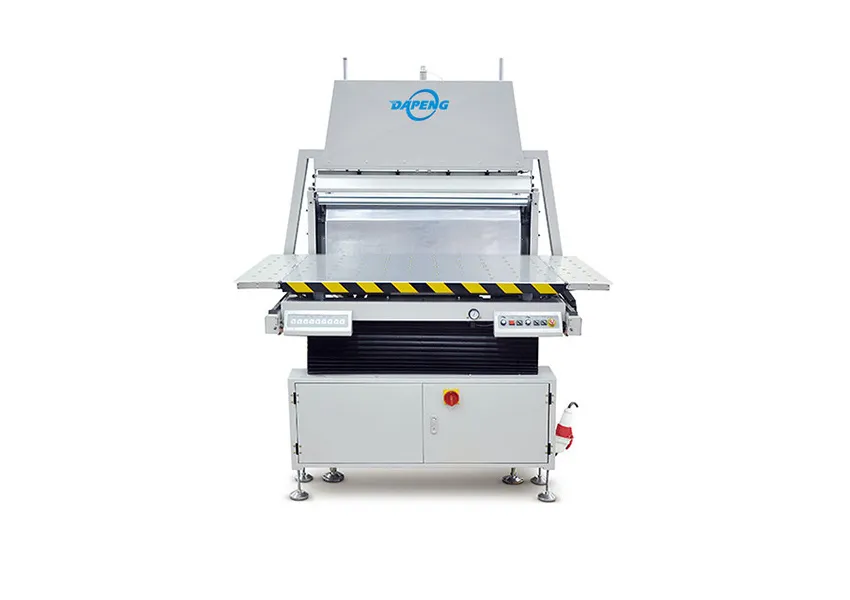

JP-2 paper jogger
Key words:
Classification:
Keyword： JP-2 paper jogger
E-mail:
Main Technical Parameters
|
Model |
JP-2 |
|
Table Length[mm/inch] |
1150/45.28 |
|
Table width [mm/inch] |
900/35.43 |
|
Width of machine[mm/inch](B) |
1550/61.02 |
|
Length of machine[mm/inch](A) |
1290/50.79 |
|
Height of machine[mm/inch] |
1875/73.82 |
|
Weight of machine [kg] |
670 |
|
Package size (cm) |
170*146*206 cm |
|
Ream height min. [mm/inch] |
30/1.18 |
|
Ream height max. [mm/inch] |
165/6.5 |
|
Table height min. [mm/inch] |
880/34.5 |
|
Table height max. [mm/inch] |
980/38.5 |
Product Description
The precise alignment of the cutting reams improves the quality considerably.
Enables quality control.
Increases the efficiency of the cutting machine by up to 40% because cutting can be continued while new material is prepared.
Blocks can be formed more easily from the layers owing to mechanized removal of air.
Four automatic table inclination angles on the right/left side just need one touch.
