Main Technical Parameters
Product Description

Main Technical Parameters

Model DP-A4055
Sheet size (before processing) (w×L) Max size 400*550mm
Min size 240*280mm
Material thickness Die cutting thickness 0.13-0.5mm

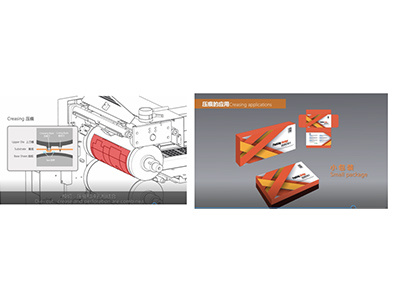

Max creasing thickness 0.4mm
Final product size with separator
Final product:W×L		 Max final product size 376*530mm
Min final product size 50*80mm
Min discharge width 5mm
Mould size Mould thickness 0.8mm
Max mould size 400*560mm
Min mould size 160*110mm
X/Y direction die cutting accuracy

±0.1mm
Feeder stack height

500mm
Max production speed (cycles per hour)

6000 cycles per hour
Voltage 220V 50HZ 1P
Main motor power 2.5KW
Weight(net weight） 1100KG
Machine size（L*W*H） 3680*980*1250mm

Product Introduction:
The DP-A4055 rotary die cutting machine exemplifies quality rotary die cutting machine engineering, featuring ±0.1mm ultra-precise feeding accuracy and quick-change flexible dies for seamless production transitions. As a leading provider of Customize rotary die cutting machine from China manufacturers, we equip this system with intelligent functions including automatic sheet feeding, double-sheet detection, mark alignment, and waste removal – all designed to maximize productivity while minimizing material waste.

Designed for user convenience, the machine incorporates a flat-type paper feeder and positioning table for smooth operation, with automatic deviation correction ensuring consistent results. Its adaptable design accommodates various materials and patterns, making it ideal for labels, packaging, and specialty product manufacturing. For businesses seeking a quality rotary die cutting machine that combines precision, automation, and customization flexibility, our DP-A4055 from China's top manufacturers offers the perfect solution for efficient, high-accuracy die-cutting operations.

Key Advantages:

  • ±0.1mm precision cutting for high-quality finished products

  • Quick-change flexible dies reduce downtime between jobs

  • Intelligent automatic systems optimize production efficiency

  • Versatile handling of different materials and designs

  • Compact footprint ideal for small-batch manufacturing spaces



Product Description

1.1、The integrated DP-A4055 Rotary Die Cutting Machine is a suitable equipment for different production. It is suitable for small batch and repeated production. It use flexible mould and easy to replace.

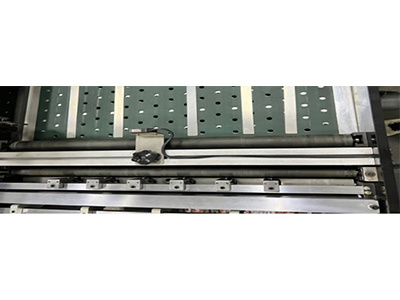

1.2、Through the flat-type paper feeder and positioning table, the paper enters the die-cutting section, and the positioning accuracy of the paper-feeding direction can reach ±0.1mm.
1.3、Automatic paper lifting, automatic paper feeding, double sheet detection, chasing mark alignment die cutting, automatic deviation correction, automatic waste discharge and other functions.

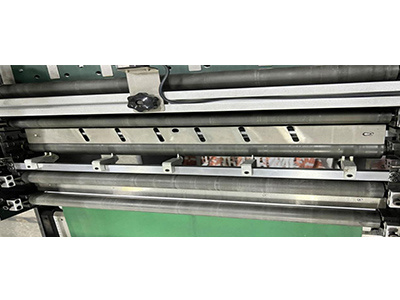

1.4、The separator section can be directed to blow away waste, and adjustment does not require tools.
1.5、The separator section and collection section can be pushed away as a whole, providing maximum convenience for changing the mould.
1.6、The wheel of separator section is Electrical control,Timing up and down,the final product will be output to the receiving table regularly.
1.7、Automatic paper lifting, automatic paper feeding, double sheet detection, chasing mark alignment die cutting, automatic deviation correction, automatic waste discharge and other functions.
1.8、Mainly suitable for stickers, tags, wine labels, playing cards, small boxes and so on. The processing materials are suitable for plain paper, coated paper, cardboard, PE film, and so on.

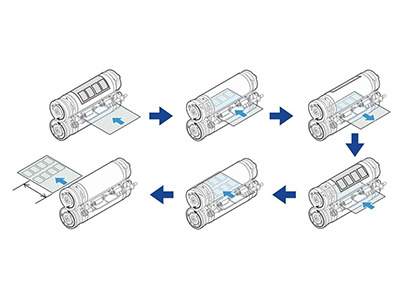

1.9、This section describes the sheet flow from the feed unit through the die cutter and the separator. The separator separates the cut product from the sheet.
